ST103A BStainless Steel Suspended Three-Head AC Ion Fan

Ionic fan action principle:

Ionic fans produce a large flow of positive and negative charges that neutralize the charge on objects. When the charge on the surface of

the object is negative, it will absorb the positive charge in the airflow, when the charge on the surface of the object is positive, it will absorb the

negative charge in the airflow, so that the static electricity on the surface of the object is neutralized, to achieve the purpose of eliminating

static electricity.

Product features:

1. Adopt high-speed wind energy to remove electricity widely

2. With automatic adjustment of ion balance circuit, the ion balance can reach ±10V

3. The electrostatic needle can be simply cleaned by electrode dry scrubbing

4. Stainless steel can significantly prolong the service life of equipment

5. Stainless steel fan has stronger corrosion resistance and is more suitable for acid and alkali

Environment

6. Heating network device can be added (optional)

Application Area

1. Liquid crystal module process

2. Manufacturing process of liquid crystal glass

3. Substrate mounting process

4. Substrate test procedure

5. Processor inspection procedure

6. Electrostatic protection of dust and dust before coating of formed products

Technical Parameter

Input voltage	AC110v~220V 50/60HZ
Capacity	46VA
Output voltage	5.6KV
Ionic equilibrium	Below ±10V (when leaving the factory)
Static removal time	1.5 seconds or less (distance 300mm, maximum air volume: when leaving the factory)
Air quantity	1.4~3.2m³/min X3fan
Wind speed	0.8~1.0m/s (300mm from the center)
Ozone generation	Under 0.006ppm (distance 150mm)
Work environment	Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation)
Filter device	Pre-filter stage
Output signal	Without
Main body size	600mm(L)×170mm(W)×125mm(H) (including bracket)
Weight	4.85kg
Noise	66dB(A) (distance 1m)
Sheathing material	Iron
Attached belonging products	Operating instructions, test reports, certificates and warranty cards

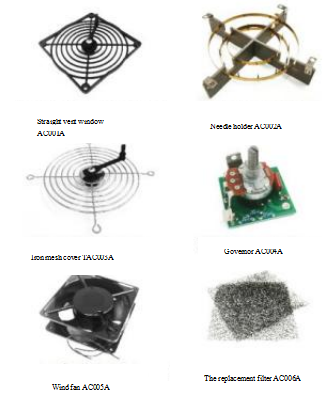

Accessory part	Straight vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan ACO05A and replacement filter ACO06A

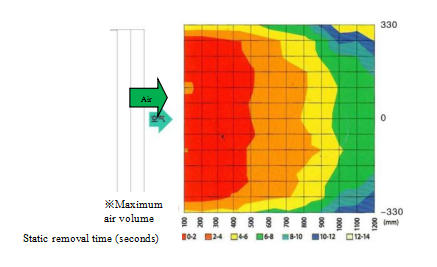

Electrostatic Removal Area

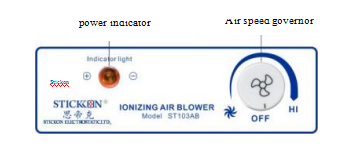

Panel Functions

Product Size
