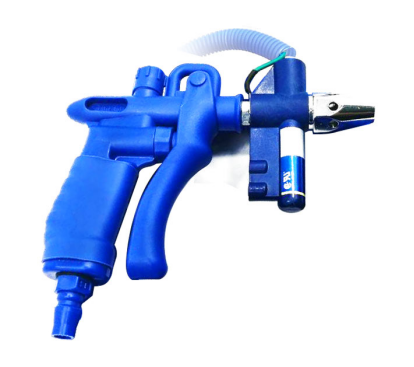

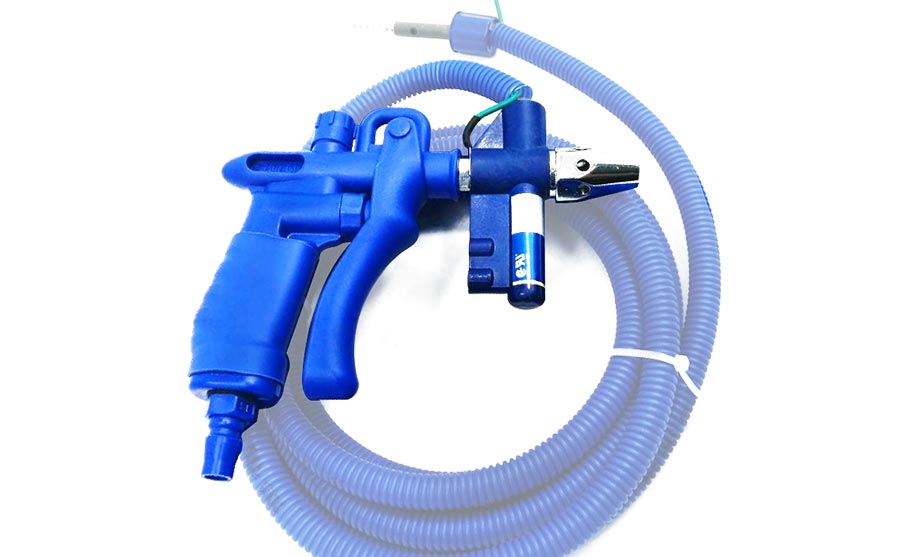

ST302G Ionizer Gun

Action Principle

It is a static electricity eliminating device with static electricity and dust. Under the action of high voltage

and low current, it produces a large number of ion airflow groups with positive and negative charges, which

reach the surface of the object by the powerful airflow generated by the air compressor and effectively

neutralize the charges on the surface of the object, thus achieving the purpose of eliminating static electricity;

The action distance of ions can reach 1 meter, which is especially suitable for occasions and environments

where human hands cannot approach.

Product Features:

1. Safety-oriented construction (except electrostatic capacity combination)

2. The wind nozzle can be used singly or in combination, and can remove electricity and dust in a wide range

3. Quick elimination of static electricity makes it easier to clean small sensitive parts and materials

4. Ion wind nozzle has good grounding protection function

5. It is especially suitable for occasions and environments that cannot be accessed by human hands, and can be set

for automatic control

6. Easy to move and install

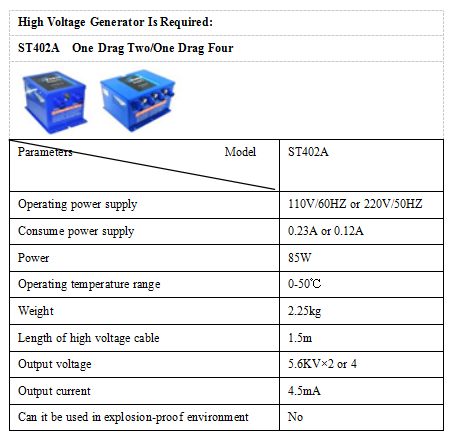

7. Stickon ST402A high-voltage generator is required for integrated use

Product Use:

1: Used to remove static electricity from resin film.

2: De-electricity and dust removal for products with complex shapes.

3: Cleaning the interior of resin container.

4: Localized electricity removal in small areas.

5: Electrostatic elimination of other resin pressed products.

Technical Parameter

Model	ST302G
Color (solid part)	Blue
Special method of minimum pitch (mm) connection type	80
Weight (each, about g)	550
Operating ambient temperature (℃)	0 ~ 40 (no frost)
Electrode structure	Capacity combination type
High voltage cable length (m)	3
Enter air pressure (MPa)	0~0.7
Ion consumption (about Nl/min) (when air pressure is 0.5MPa)	171
Screw size of air joint (simple operation joint)	PT1/8
Outside diameter of applicable trachea (mm)	6
Use high voltage (kVac)	7
Charged decay time (seconds)	Power supply device 7, power supply device 150 (defining the type of shielded cable)
Ion balance loop (compensation voltage)	None
Suitable power supply device	Power supply device 7, power supply device 150 (defining the type of shielded cable)

※Ion wind nozzle is a non-explosion-proof commodity.

※Charged decay time: 20pF charged plate is needed when 500V is gradually reduced, the distance between

charged plate and each electrode is 100mm when the charged plate voltage is 5KV, and MPa is the ion

pressure during measurement.

※Ion balance: Use an anode display with a distance of 100mm and an ion pressure of 0.2MPa

※Each data is a measured value, not a guaranteed value.

Product Size
