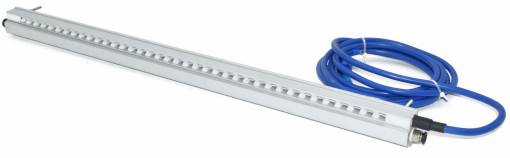

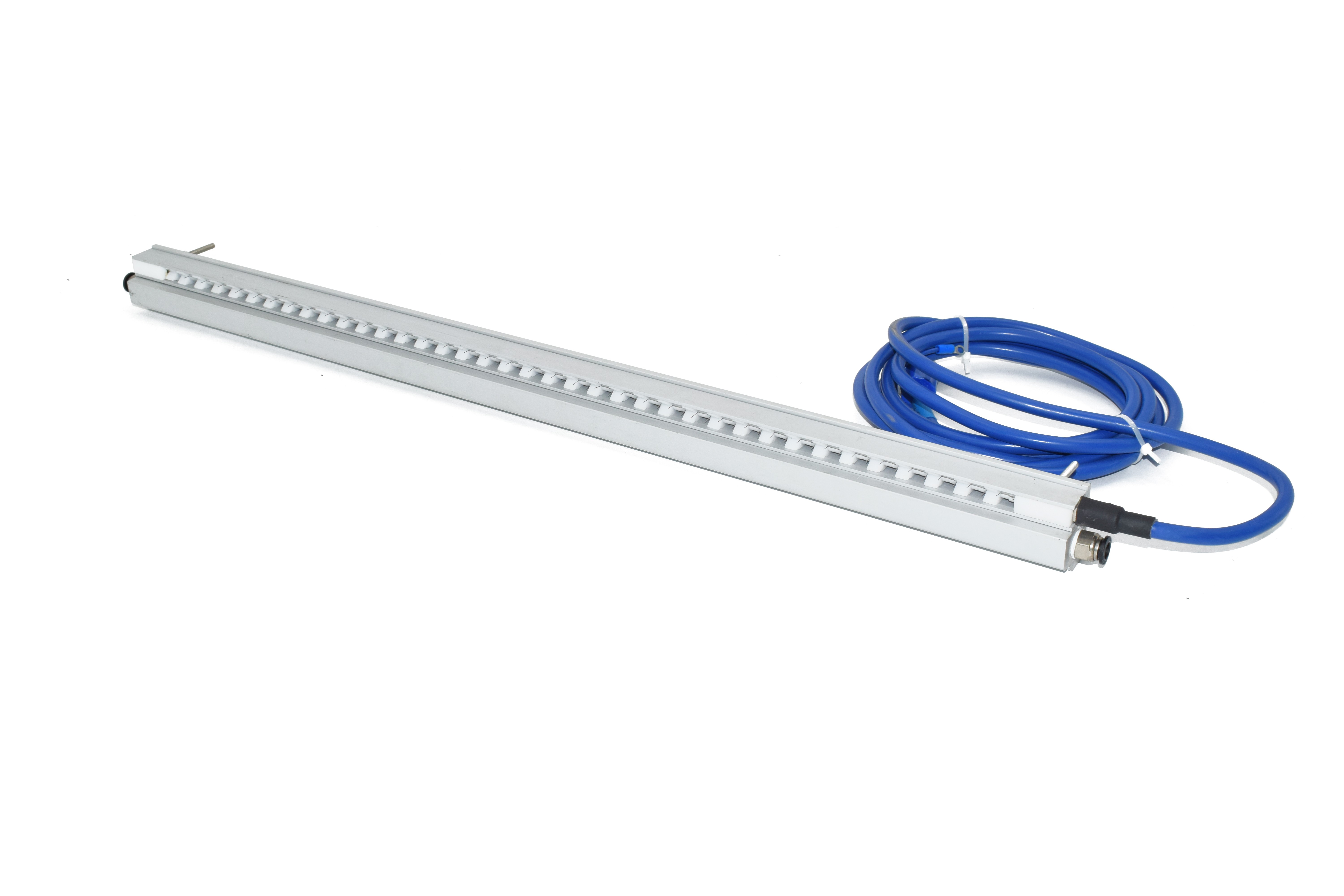

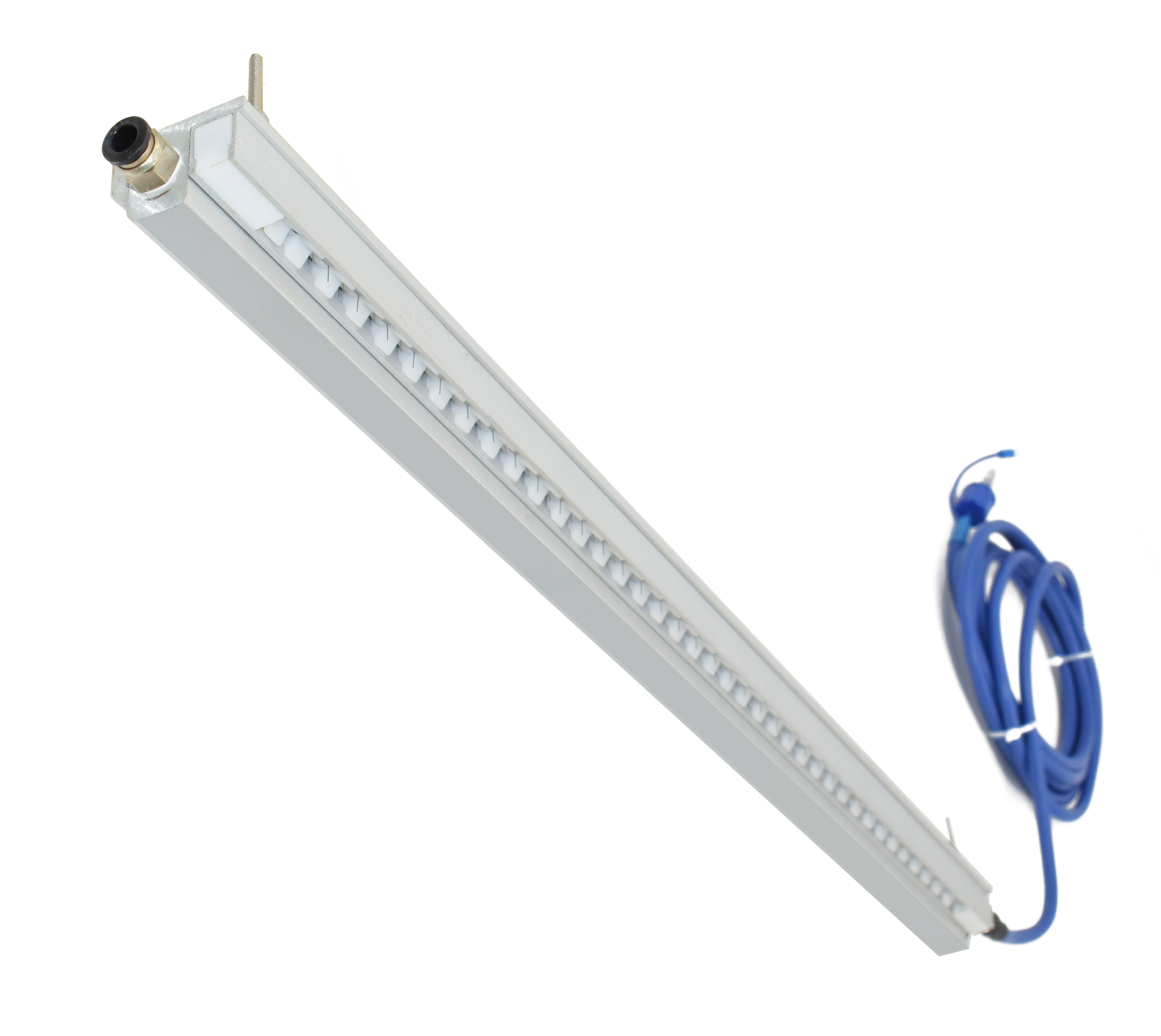

ST-505A Ion Curtain
ST-505A Ion Curtain
Customizable length: 150~4000mm
Product Features:
1. Two-in-one static and dust removal
2. Motor-free design, aluminum material
3. Static electricity removal and air power can be organically combined
4. Aluminum alloy shell, built-in unique high-component air pipe, can be equipped with compressed air
Model Parameter | ST403A |
Operating power supply | 110V/60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 95W |
Operating temperature range | 0-50℃ |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 7.0KV×2 or 4 |
Output current | 4.5mA |
Can it be used in explosion- proof environment | No |
Technical Parameter
Model | ST505A |
Ion generation mode | Piezoelectric type |
Operating voltage | 7.0KV |
Power consumption | 0.6mA |
Gas consumption | 0.05m3/min within 600mm of bar length |
Neutralization time | < 2s |
Measure | 395mm(w) × 290mm(H) |
Operating temperature range | 0-50℃ |
Length of high voltage cable | 3Meters |
Maxlength | 4M (can be customized) |
Operating relative humidity | ≦60%RH |

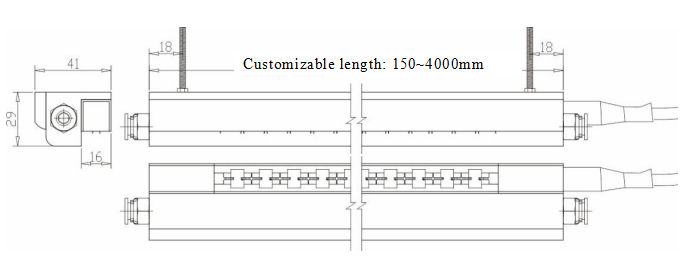

Product Size

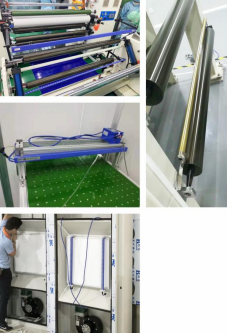

Scene Diagram of Ion Air Bar Field Installation
