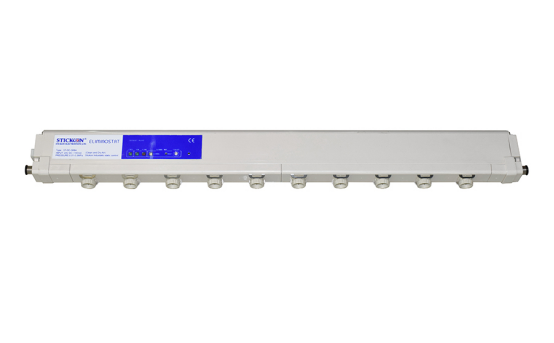

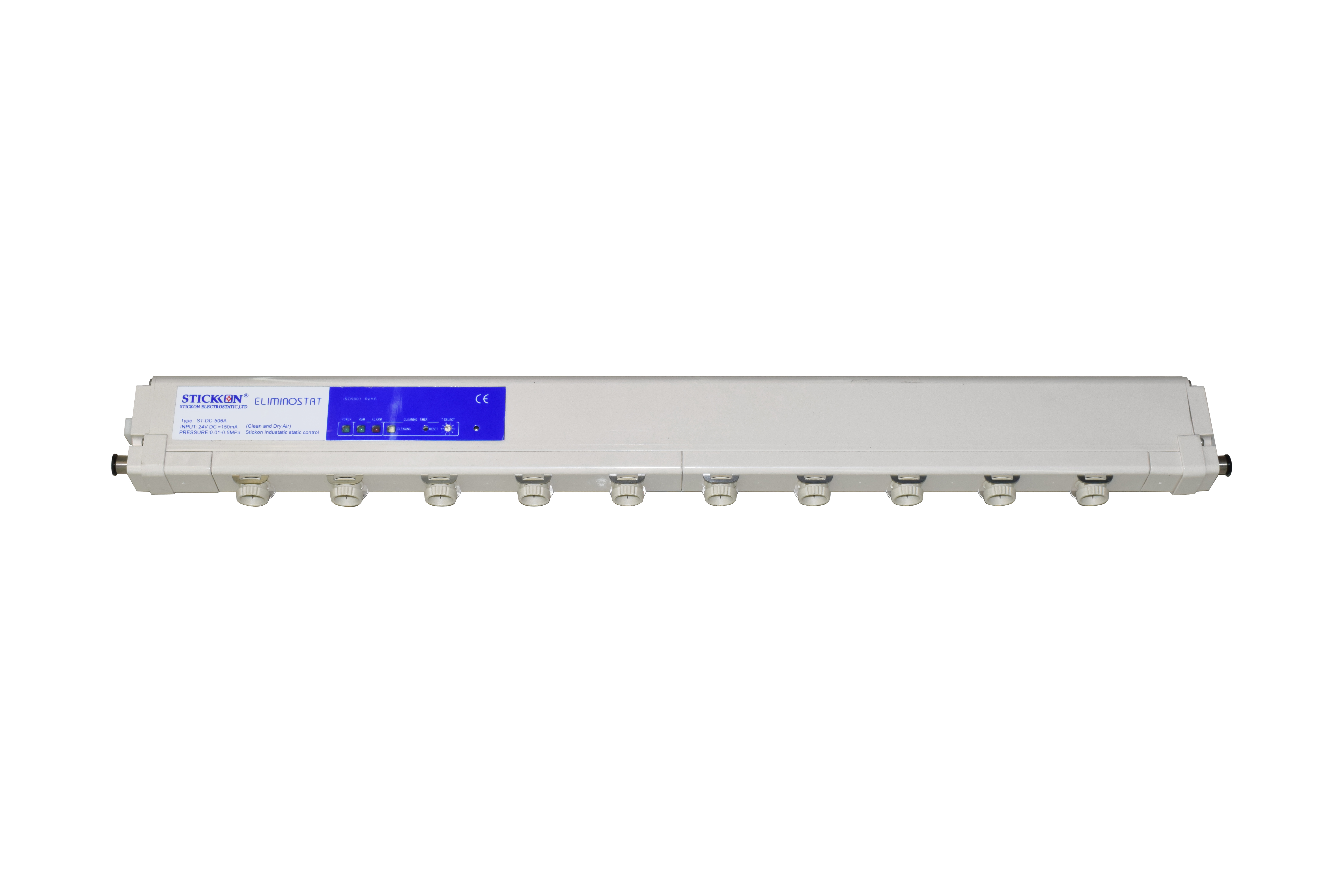

ST-DC-506AAir Source DC Ion Bar

ST-DC-506A

Air Source DC Ion Bar

Built-in type of high voltage power supply equipped with HDC-AC

HDC-AC technology provides long-term stability in static elimination without the need for cleaning over the long term.

 30% improvement in static elimination times and products sizes over existing models!

Main features

HDC-AC technology provides stable and long-term static elimination capabilities .we have designed an ionizer that does not require cleaning over the long term.

1. 30% increase in capabilities

2. Long-term stability of static elimination capabilities

3. Decrease in emitter needle abrasions

4. Ultra low ozone

5. Superior ion balance

6. Minimum flow type nozzle

7. Cleaning timer

8. Emitter needle variations

9. Safety features

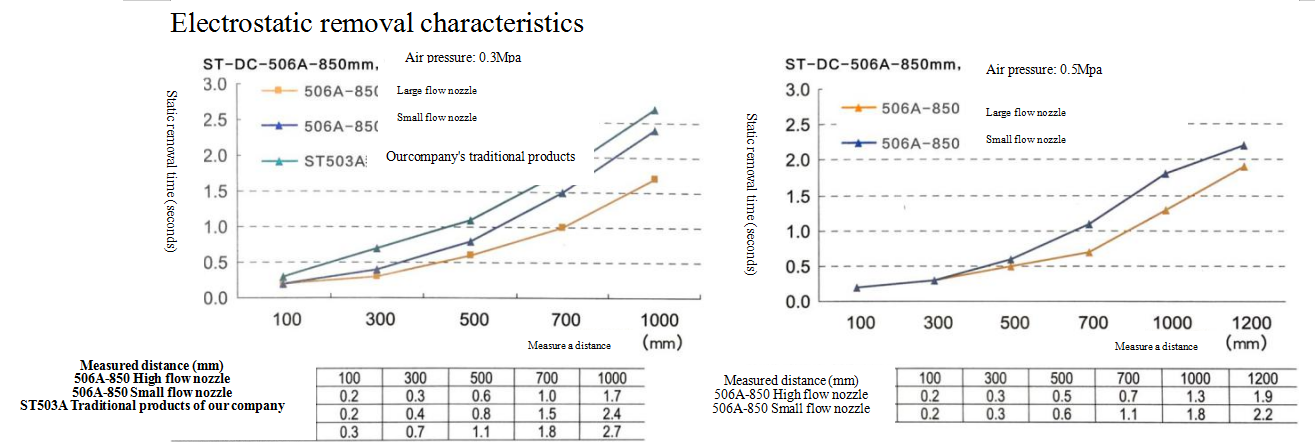

●   The time and size of static electricity removal are increased by 30% (compared with the traditional products of our company)

ST-DC-506A is the successor model of our company's traditional product ST503A. The static electricity removal time is increased by more than 30%, and it is more miniaturized. It is an ionizer with the industry's top static electricity removal performance.

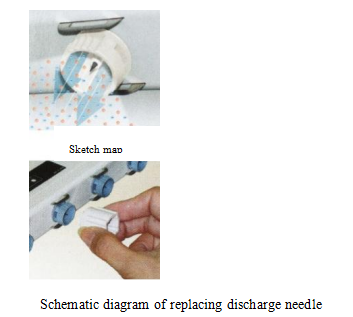

l Small-flow discharge needle nozzle for suppressing air consumption is easy to replace

There are also two kinds of discharge needle nozzles, i.e., normal air consumption nozzles and small flow nozzles which can restrain compressed air consumption. The nozzle can be conveniently replaced.

l The cleaning timer function notifies the cleaning time

When the timer reaches the preset value, the LED lights up to inform that it is time to clean the discharge needle. The time until lighting can be set by the user. (100 to 10000 hours, 9 modes, can also be set to no lights.)

l Ensure safety

Through micro-discharge detection and low-voltage wiring of DC24V input, the use safety is ensured

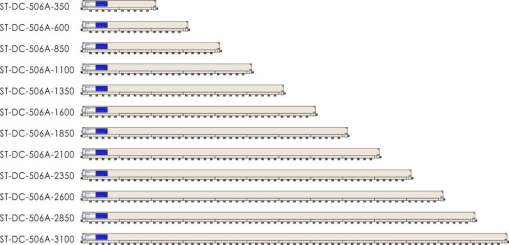

Product standard

Product parameter

Indicator panel

Meaning of each indicator light

POWER: Green LED lights up when the power is turned on normally

RUN: Green LED lights up during normal operation

ALARM: The red LED lights up when micro-discharge occurs in the high-voltage part of the main body such as the discharge needle or overcurrent occurs in the main circuit

CLEANING: When the accumulated running time set with T-SELECT exceeds, the yellow LED lights up until it is released with RESET button

TIMER RESET: This button is used to turn off the CLEANING LED

T-SELECT: This selector is used to set the cumulative continuous time for lighting CLEANING LED

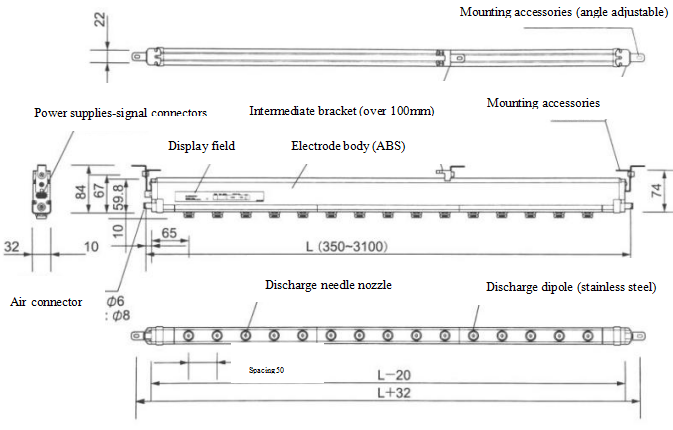

Dimensional drawing

Built-In Type of High Voltage Power Supply Equipped With HDC-AC

1. Static Electricity Can Be Removed Uniformly and Stably in the Whole Region

A large amount of positive and negative ions are uniformly supplied in the whole static removing area all the time, and the static removing difference of each area is very small, which is most suitable for electronic equipment requiring fine static removing, etc.

2. Safety Function of Detecting Abnormal Discharge and Spark

It is a safety function of automatically cutting off the applied high voltage after detecting abnormal high voltage discharge such as short circuit of discharge needle of ionizer.

3. Reduce Air Consumption (※ When Using Small Flow L Nozzle)

The original nozzle shape greatly reduces the air consumption (60% less than our products).

Support strong and stable static removal. The nozzle structure is designed to be replaceable, detachable.

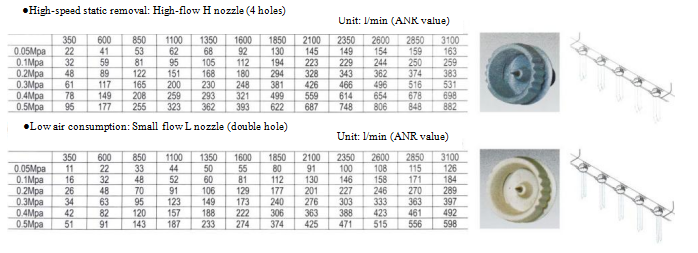

You Can Choose From two Kinds of Nozzles According to the Application:

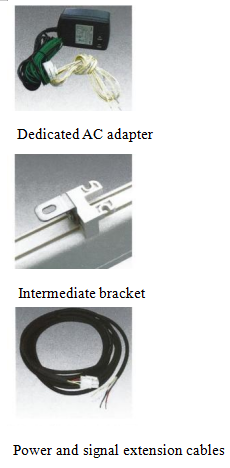

Options That Support Refreshing Static Removal

l AC adapter for ST101BS: ST101BS-DA (Input voltage AC100V~240V)

l Intermediate bracket: ST101BS-SUSP-A (Standard equipment above 1100)

l Power and signal extension cables: ST101BS-ENC3M (length: 3 m)

l Low flow type l nozzle

Specification of tungsten discharge needlST101BS-NDL-LW01

l High-flow H nozzle

Specification of tungsten discharge needle: ST101BS-NDL-HW01

Optional items
