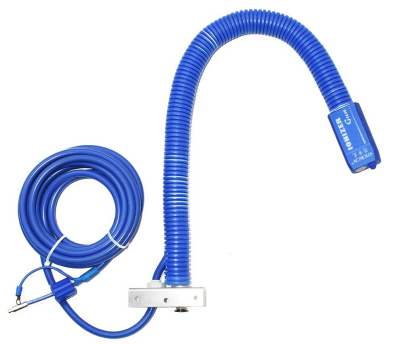

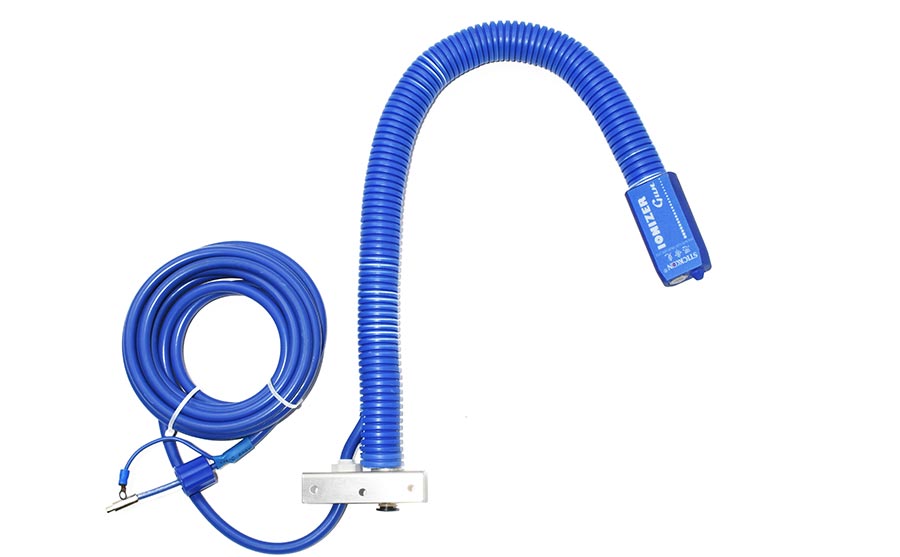

ST202B Rectifier Type Ion Wind Snake Nozzle

Product Features:

1. It is a fixed special equipment for eliminating static electricity

2. The high-voltage generator needle is designed as "no electric shock" high-voltage discharge after special

process treatment

3. It is a static electricity eliminating tuyere with excellent performance, which can adjust the direction universally

and is convenient to use

3. The unique super-strong adjustable wind can immediately remove stubborn dust particles and static electricity

on the surface of objects

6. High air pressure, which can directly adjust the wind force;

7. Stickon ST402A high-voltage generator is required for integrated use

High voltage generator is required: ST402A one tow two/one tow four
Model Parameters	ST402A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	85W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	5.6KV X 2 or 4
Output current	4.5mA
Can it be used in explosion- proof environment	No

Technical Parameter

Model	ST202B
Ion generation mode	Rectifier type
Material of discharge needle	Tungsten steel
Host material	Stainless steel/ABS fireproof engineering plastics
Air ion supply range	8cm~15cm
Air inlet pipe	Duct with inner diameter Φ 8
Body size	570mm (L)×30mm (W)×80mm (H) Standard cable length 2.5M
Accessories	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.08m³/min
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

Product Size
