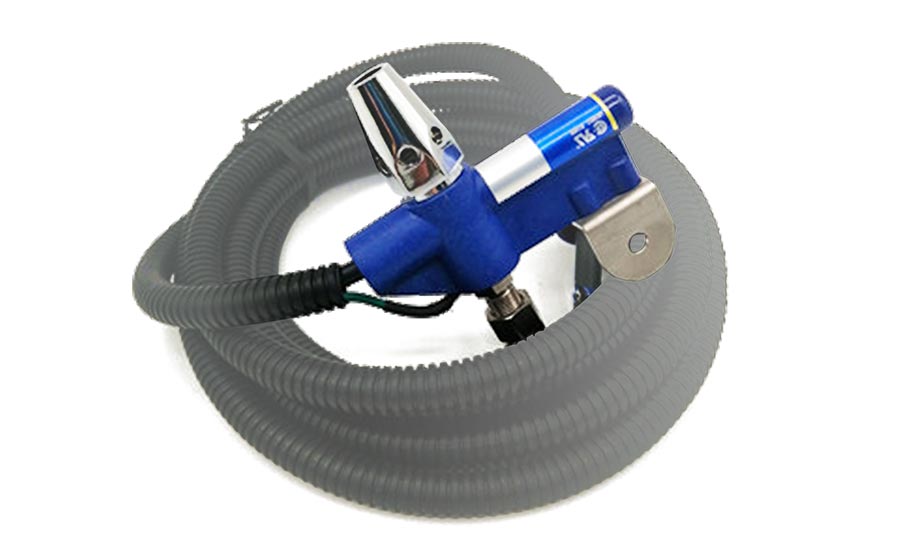

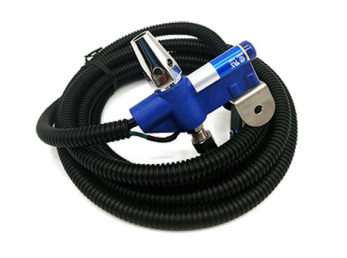

ST201B Piezoelectric Ion Nozzle
ST201B Piezoelectric Ion Nozzle
Product Features:
1. Gas, reduce unnecessary waste of compressed gas and noise.
2. Ion nozzle can be equipped with foot switch to control compressed gas.
3. Stickon ST402A high-voltage generator is required for integrated use
4. Easy to move and install.
Model Parameter | ST402A |
Operating power supply | 110V/60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 85W |
Operating temperature range | 0-50℃ |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 5.6KV×2 or 4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical Parameter
Model | ST201B |
Ion generation mode | Ac type |
Material of discharge needle | Wolfram steel |
Host material | Iron/ABS fireproof engineering plastics |
Air ion supply range | 8cm~15cm |
Air inlet pipe | Duct with inner diameter φ 8 |
Body size | The length of 86mm(L)×30mm(W)×80mm(H) standard cable is 2.5M |
Appendix | Instructions/warranty cards/certificates |
Performance | Static removal time < 1.5S |
Air consumption | 0.08m³/min |
Noise | 56DB |
Ozone production | < 0.02ppm or less (measuring distance 200mm) |
Product Size
