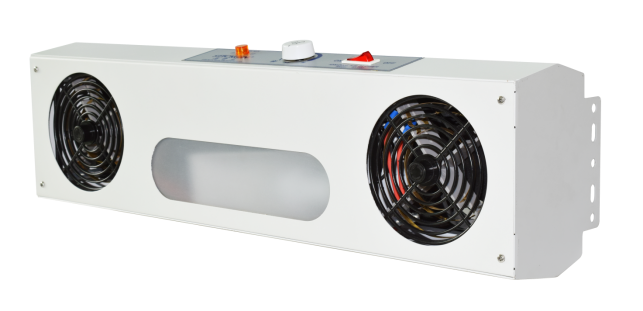

ST102 Suspended Double-Head AC Ion Fan

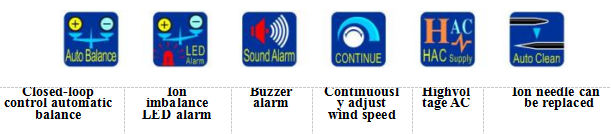

Product features:
1. Used to eliminate static electricity in a wide range, two beams of ion wind output, suitable for suspension
Installation
2. Quickly eliminate static electricity, the ion balance voltage is 0V±10V, and the wind speed can be continuously
Adjusted
3. Equipped with ion needle cleaner, ion generation indicator lamp, built-in fan and high voltage power supply
4. Heating network device can be added (optional)
Technical parameter
Input voltage | AC110v~220V 50 / 60HZ |
Capacity | 36VA |
Output voltage | 5.6KV |
Ionic equilibrium | Below ±10V (when leaving the factory) |
Air quantity | 45~110CFM |
Ozone generation | Below 0.004ppm (150mm center in front of tuyere) |
Work environment | Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation) (refer to SSD comprehensive parameters) |
Filter | Prefilter stage |
Output signal | Without |

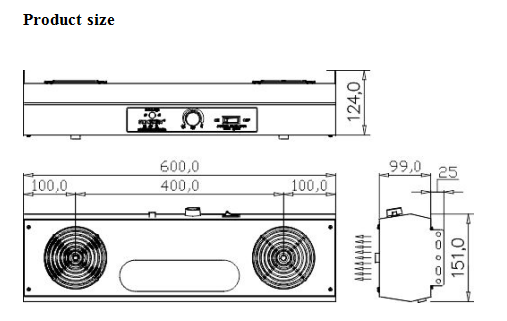

Main body size | 600mm(L)×151mm(W)×124mm(H) (including bracket) |
Weight | 5.1kg |
Noise | 59dB(A) distance 1m |
Sheathing material | Iron |
Appendix | Operating instructions, test reports, certificates and warranty cards |

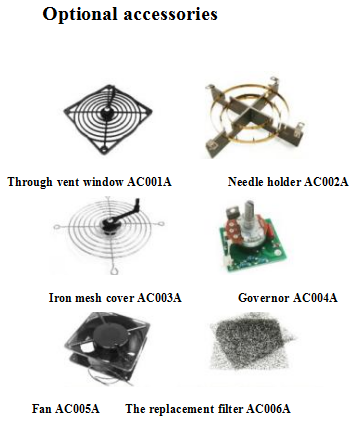

Accessory part | Pass-through vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan AC005A and replacement filter AC006A |

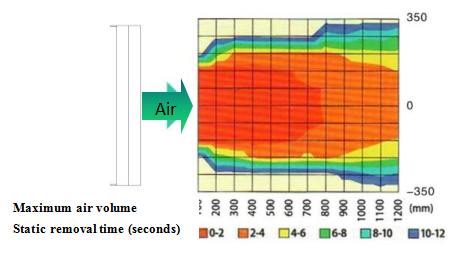

Electrostatic removal area

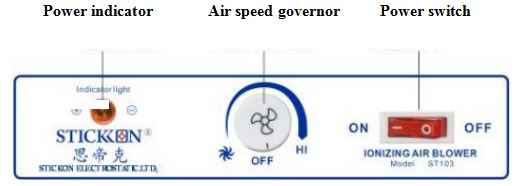

Panel functions
