ST102D Table Type Double-Head AC Ion Fan

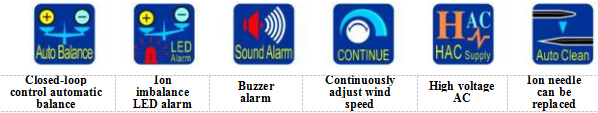

Product features:
1. Automatic ion balance system, ion balance: within 0±10v

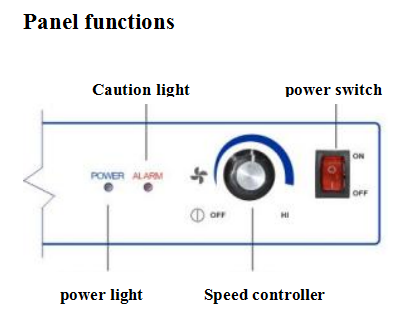

2. Equipped with power-off operation indicator and high-voltage abnormal alarm indicator
3. Equipped with high-pressure abnormal alarm buzzer
4. Special tungsten alloy discharge needle, long-term use without wear and tear
5. The loading and unloading of the windshield is very simple, and the cleaning of the electrodes is very
Convenient
6. The shell sheet metal is galvanized on both sides and electrostatically sprayed
7. Piezoelectric high-voltage power supply is used, which is light in weight, small in size, free of electromagnetic
interference and safe in use. It is equipped with automatic ion balance system and high-voltage anomaly
monitoring system
8. Automatic cleaning function can be added (the internal cleaning brush is installed for cleaning, and
maintenance is basically not needed in automatic occasions)
Technical parameter
Input voltage | DC24V (with AC adapter, support AC100-240V) |
Capacity | 25VA (at maximum wind speed) ± |
Output voltage | ±7500VO-P |
Ionic equilibrium | Below 5 V (distance 300mm: when leaving the factory) |
Air quantity | 1.4~3.2m3/min X2fan |
Wind speed | 1.7~3.3m/s (300mm from the center) |
Ozone generation | Under 0.006ppm (distance 150mm) |
Work environment | Ambient temperature: 0~40℃, Ambient humidity: 15~85%RH (no condensation) |
Filter | Prefilter stage |
Output signal | MOS FET relay has no voltage contact output (NC output), (OFF when high voltage is abnormal or fan is abnormal) |

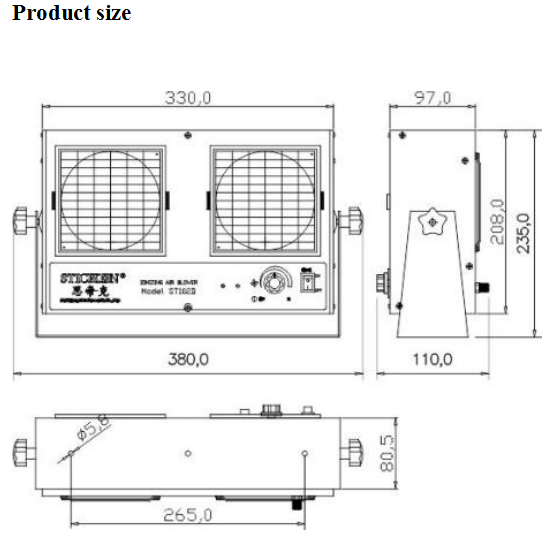

Main body size | 380mm(L)×110mm(W)×235mm(H) (including bracket) |
Noise | 62dB(A) (distance 1m) |
Sheathing material | Iron |
Appendix | Operating instructions, test reports, certificates and warranty cards |

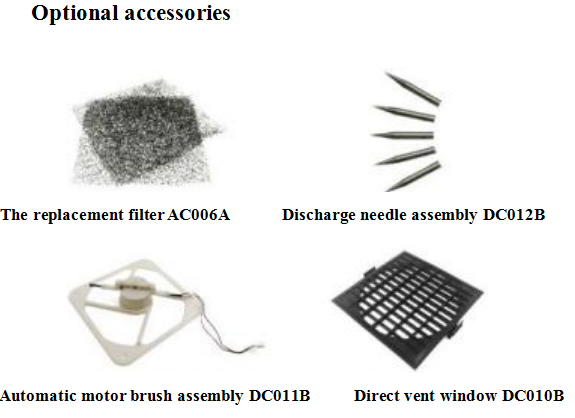

Accessory part | The replacement filter AC006A, the replacement discharge needle assembly DC012B, the automatic motor brush assembly DCO011B, and the straight vent window DC010B |

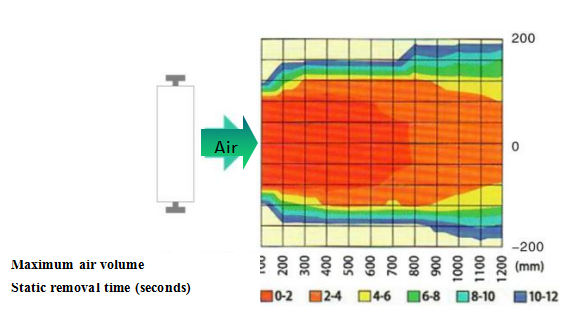

Electrostatic removal area
