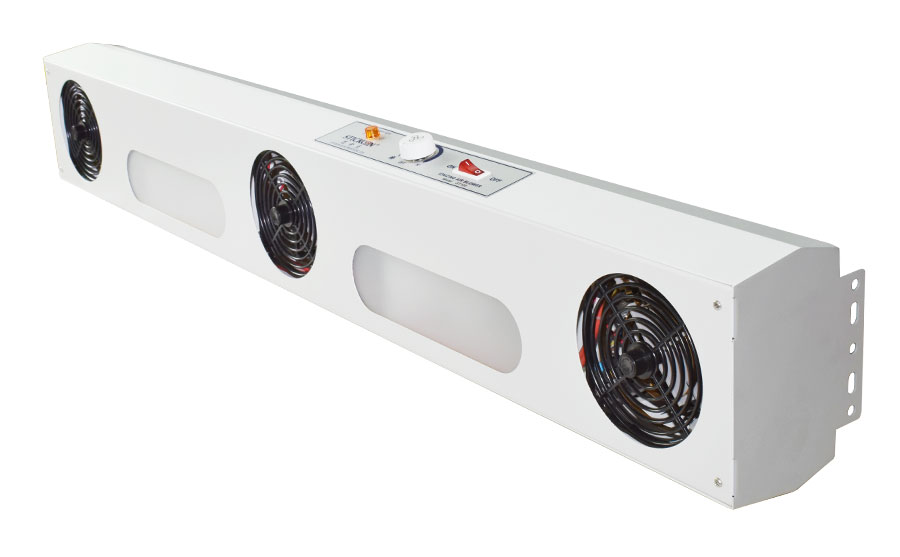

ST103 Suspended Three-Head AC Ion Fan
ST103 Suspended Three-Head AC Ion Fan
Product features:
1. Adopt high-speed wind energy to remove electricity widely
2. The electrostatic needle can be simply cleaned by electrode dry scrubbing
3. Heating air device can be added
4. The fuselage length can be customized
5. Adopt safe low voltage configuration
6. Wind speed adjustment is flexible (custom stepless speed regulation), and scale marks are more conducive to
visual management
Technical Parameter
Input voltage | AC110v~220V 50/60HZ |
Capacity | 46VA |
Output voltage | 5.6KV |
Ionic equilibrium | Below ±10V (when leaving the factory) |
Air quantity | 2.6~4.0m3/min X3fan |
Ozone generation | Under 0.005ppm (distance 150mm) |
Work environment | Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation) |
Filter device | Pre-filter stage |
Output signal | Without |
Main body size | 1100mm(L)×170mm(W)×124mm(H) (including bracket) |
Weight | 7.5kg |
Noise | 66dB(A) (distance 1m) |
Sheathing material | Iron |
Attached belonging products | Operating instructions, test reports, certificates and warranty cards |
Accessory part | Straight vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan ACO05A and replacement filter ACO06A |
Electrostatic Removal Area
